Stolt Steel, based in Dubai, UAE, has built a solid reputation as a stockist and supplier of top-notch structural steel products, particularly Beams (W-Section). Catering to the construction, industrial, and infrastructure sectors, this company is well-regarded for providing dependable materials that adhere to strict international standards. Their W-Section Beams are designed for exceptional strength, durability, and performance, making them perfect for a variety of load-bearing applications. Thanks to their unwavering commitment to quality, technical know-how, and timely deliveries, Stolt Steel has earned the trust of contractors and developers across Dubai and the Gulf region.
W Section Beams UAE, Structural W Beams Dubai, Mild Steel W Section Abu Dhabi, Hot Rolled W Beams Sharjah, Carbon Steel W Structural Section UAE, Wide Flange W Beam Dubai, MS W Beams Abu Dhabi, Steel W Shape Sections Sharjah, W Section Steel Beam Sizes UAE, Structural Wide Flange W Profile Dubai, Heavy Duty W Section Beam Abu Dhabi, W Structural Steel Sharjah.
Table of Contents
W Section Beam Supplier UAE, W Structural Beam Stockist Dubai, Wide Flange W Profile Exporter Abu Dhabi, W Section Steel Stockist Sharjah, Hot Rolled W Beams Distributor UAE, Structural W Shape Dealer Dubai, MS Wide Flange Beam Trader Abu Dhabi, W Section Steel Wholesale Sharjah, Construction Grade W Beams UAE, Fabrication W Section Steel Dubai, High Strength W Structural Beam Abu Dhabi, Industrial W Shape Steel Stock Sharjah.
What is Beams (W-SECTION)?
When it comes to producing Beams (W-Section), Stolt Steel utilizes structural carbon steel grades like ASTM A36, A572, or A992. The chemical makeup of these beams typically features controlled amounts of carbon, manganese, silicon, and trace elements such as phosphorus and sulfur, all of which enhance their weldability and strength. On the mechanical side, W-Section Beams boast yield strengths ranging from 250 to 345 MPa and tensile strengths between 400 and 550 MPa, depending on the specific grade. Their wide flanges and symmetrical design provide outstanding resistance to bending, torsion, and shear, ensuring they can carry heavy loads while maintaining structural stability.
Beams (W-SECTION) Specifications
| Specification | Details |
|---|---|
| Product Name | Wide Flange Beams (W-Section) |
| Shape Designation | W |
| Standard | ASTM A992 / ASTM A572 Grade 50 |
| Steel Type | Structural Carbon Steel |
| Manufacturing Process | Hot Rolled |
| Flange Type | Parallel Flanges |
| Minimum Yield Strength | 345 MPa (50 ksi) |
| Tensile Strength | 450 – 620 MPa |
| Elongation | ≥ 18 – 21% (size dependent) |
| Modulus of Elasticity | 200 GPa |
| Density | 7.85 g/cm³ |
| Depth Range | W4 to W44 |
| Length | 6 m – 18 m (custom lengths available) |
| Surface Finish | Black, Shot Blasted, Primed, Painted |
| Weldability | Excellent |
| Testing & Inspection | Chemical analysis, tensile test, dimensional check |
| Certification | Mill Test Certificate (MTC) |
| Typical Applications | Buildings, bridges, industrial structures, columns, beams |
Beams (W-SECTION) Chemical Compositions
| Element | ASTM A992 (%) | ASTM A572 Gr.50 (%) |
|---|---|---|
| Carbon (C) | ≤ 0.23 | ≤ 0.23 |
| Manganese (Mn) | 0.50 – 1.50 | 0.60 – 1.60 |
| Silicon (Si) | ≤ 0.40 | ≤ 0.40 |
| Phosphorus (P) | ≤ 0.035 | ≤ 0.035 |
| Sulfur (S) | ≤ 0.045 | ≤ 0.045 |
| Copper (Cu) | ≤ 0.60 | ≤ 0.60 |
| Nickel (Ni) | ≤ 0.40 | ≤ 0.40 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 |
| Molybdenum (Mo) | ≤ 0.12 | ≤ 0.12 |
| Vanadium (V) | ≤ 0.08 | ≤ 0.08 |
| Columbium (Nb) | ≤ 0.05 | ≤ 0.05 |
Beams (W-SECTION) Equivalent Grades
| Standard / Country | Equivalent / Comparable Grade |
|---|---|
| ASTM (USA) | ASTM A992 |
| ASTM (USA) | ASTM A572 Grade 50 |
| EN (Europe) | EN 10025 S355JR / S355J2 |
| BS (United Kingdom) | BS 4360 Grade 50 / S355 |
| DIN (Germany) | DIN 17100 St52 |
| JIS (Japan) | JIS G3101 SS490 |
| IS (India) | IS 2062 E350 |
| GB (China) | GB/T 1591 Q345B |
| CSA (Canada) | CSA G40.21 350W |
| AS/NZS (Australia) | AS/NZS 3679.1 Grade 350 |
If You Are Looking To Buy High Quality Pipes, Sheet, Angle, Hollow Section, Flat Product.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
W Section Beam Price in UAE, W Shape Steel Price List Dubai, W Beam Dimensions in mm Abu Dhabi, Structural Wide Flange Beams Sharjah, Hot Rolled W Section for Construction UAE, W Beams for Infrastructure Dubai, MS Wide Flange Section Abu Dhabi, W Structural Steel for Industrial Projects Sharjah, Engineering Grade W Beams UAE, W Section Steel Supply Dubai, W Beam for Fabrication Abu Dhabi, Wide Flange W Beam Stock Sharjah.
Stolt Steels is the largest stockist of Beams (W-SECTION) in Dubai, UAE.
Stolt Steels is a trusted stockist, stockist, and supplier of premium-quality steel products in Dubai, UAE, serving diverse industrial sectors with reliable materials and timely delivery. With a strong commitment to excellence, we offer a wide range of pipes, sheets, plates, and other metal solutions designed to meet global standards. Our extensive inventory, expert support, and customer-focused approach make us a preferred partner for companies seeking durable and high-performance steel products. For inquiries or orders, contact us at sales@stoltsteels.com.

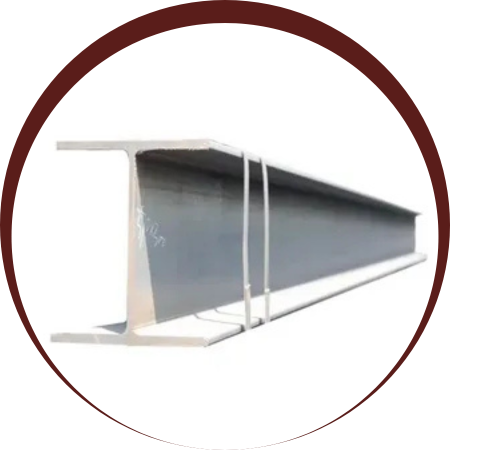

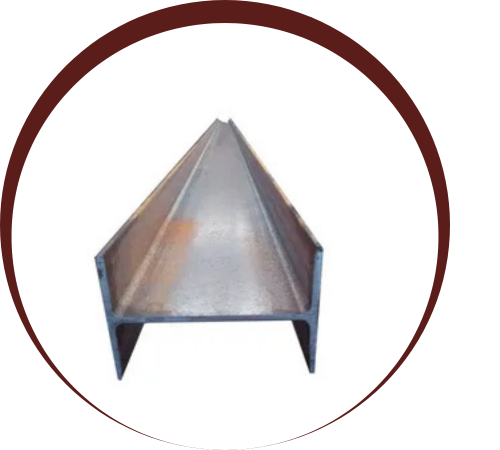

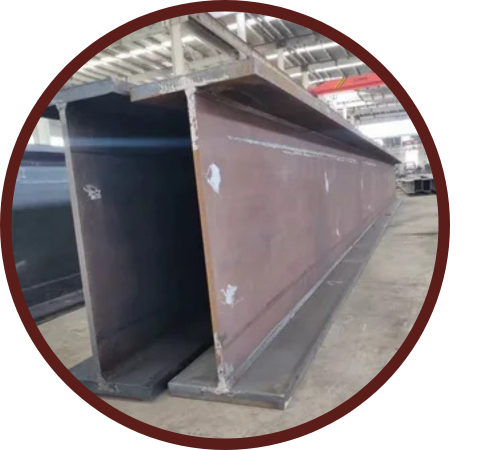

Types of Beams (W-SECTION)
Uses of Beams (W-SECTION)
W-Section Beams are a go-to choice for construction and engineering projects that demand robust and reliable structural support. Their design makes them particularly well-suited for long spans, heavy load-bearing frameworks, and situations involving both horizontal and vertical loads. You’ll commonly find them in building frames, floor systems, roof structures, bridges, platforms, mezzanines, and industrial support systems. The wide flange profile allows for efficient load distribution, making them ideal for crane beams, warehouse structures, and large commercial developments. With their versatility and strength, W-Section Beams continue to be a favorite among architects, engineers, and construction professionals.
