Chequered Plate Stockist and Supplier in Dubai, UAE
Home> Flat Product > Chequered Plate
Stolt Steel has built a solid reputation as a reliable stockist and supplier of top-notch Chequered Plates in Dubai, UAE. These plates are designed to be durable and anti-slip, making them perfect for a variety of uses in industrial, commercial, and architectural settings. With a focus on precision manufacturing, corrosion resistance, and impressive load-bearing capabilities, these plates are essential wherever enhanced grip and safety are a priority. Stolt Steel provides Chequered Plates in a range of grades, sizes, and finishes, all crafted to meet international standards and specific industry needs. The company prides itself on dependable delivery, rigorous quality control, and competitive pricing, ensuring that their chequered steel is ideal for flooring, platforms, stairways, and heavy-duty structural applications.
Chequered Plate UAE, Mild Steel Chequered Plate Dubai, MS Chequered Sheet Abu Dhabi, Checkered Steel Plate Sharjah, Hot Rolled Chequered Plate UAE, Carbon Steel Chequered Plate Dubai, Anti-Skid Chequered Plate Abu Dhabi, Diamond Chequer Plate Sharjah, Steel Tread Plate UAE, MS Pattern Plate Dubai, Chequered Flooring Plate Abu Dhabi, Industrial Chequer Plate Sharjah.
Table of Contents
Chequered Plate Supplier UAE, MS Chequered Plate Stockist Dubai, Chequered Sheet Exporter Abu Dhabi, Chequered Steel Plate Stockist Sharjah, Mild Steel Checkered Plate Distributor UAE, HR Chequered Plate Dealer Dubai, Anti-Slip Chequer Plate Trader Abu Dhabi, Industrial Flooring Chequered Plate Wholesaler Sharjah, Chequered Plate for Ramps UAE, MS Tread Plate Fabrication Dubai, Pattern Steel Plate Industrial Grade Abu Dhabi, Chequered Steel Plate Warehouse Sharjah.

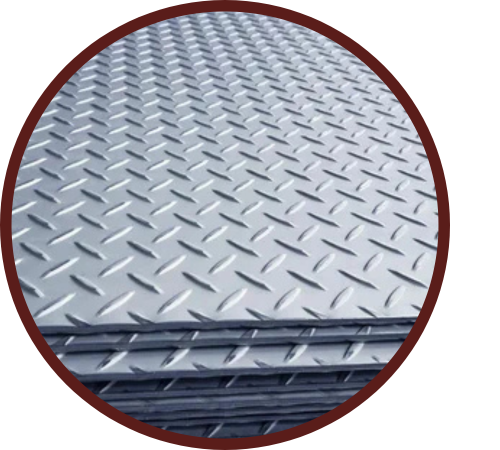

What is Chequered Plate ?
The material used for Chequered Plates typically includes Carbon, Manganese, Silicon, Sulfur, and Phosphorus, with levels carefully controlled based on the selected grade, such as MS, SS, or carbon steel variants. These plates boast impressive mechanical properties, including high tensile strength ranging from 370 to 520 MPa, good yield strength, and excellent abrasion resistance. The raised pattern not only enhances traction and slip resistance but also maintains formability and weldability. Additionally, these plates offer outstanding impact strength, durability, and structural reliability under heavy loads, making them ideal for both industrial and safety-focused applications.
Chequered Plate Specifications
| Specification | Details |
|---|---|
| Thickness Range | 2mm – 12mm (Common: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm) |
| Width | 600mm – 1800mm (Common: 1000mm, 1250mm, 1500mm) |
| Length | 2000mm – 12000mm (Common: 2000mm, 3000mm, 6000mm) |
| Surface Pattern | Diamond, Tear Drop, 5-Bar, Single Bar Pattern |
| Material Grades | Mild Steel (IS 2062 / ASTM A36 / EN / JIS Standards) Stainless Steel (SS 304 / 316 / 310) Aluminium (AA 3003 / 5052) |
| Manufacturing Process | Hot Rolled (HR), Cold Rolled (CR), or Galvanized |
| Finish Type | Smooth bottom, patterned top—anti-slip |
| Tensile Strength (Mild Steel) | 400 – 550 MPa |
| Yield Strength (Mild Steel) | 250 – 275 MPa |
| Elongation | Min. 23% (varies by grade and thickness) |
| Standards Followed | IS 3502, IS 2062, ASTM A786, EN, DIN, JIS Standards |
| Weight Classification | Standard weight based on thickness & size (as per IS 3502 / A |
Chequered Plate Chemical Compositions
| Grade | C (%) | Mn (%) | Si (%) | S (%) | P (%) | Cr (%) | Ni (%) | Others |
|---|---|---|---|---|---|---|---|---|
| IS 2062 MS | ≤0.23 | 0.90–1.50 | ≤0.40 | ≤0.040 | ≤0.040 | — | — | Fe Balance |
| ASTM A36 MS | ≤0.26 | 0.60–1.20 | ≤0.40 | ≤0.050 | ≤0.040 | — | — | Fe Balance |
| SS 304 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.030 | ≤0.045 | 18–20 | 8–11 | — |
| SS 316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.030 | ≤0.045 | 16–18 | 10–14 | Mo 2–3% |
| Aluminium 3003 | ≤0.05 | 1.0–1.5 | ≤0.60 | — | — | — | — | Al Balance + Cu 0.05–0.20% |
Chequered Plate Equivalent Grades
| Standard | SS 304 Equivalent | SS 316 Equivalent |
|---|---|---|
| ASTM / AISI | 304 | 316 |
| EN Standard | 1.4301 / X5CrNi18-10 | 1.4401 / X5CrNiMo17-12-2 |
| JIS Standard | SUS 304 | SUS 316 |
| DIN Standard | 1.4301 | 1.4401 |
If You Are Looking To Buy High Quality Pipes, Sheet, Angle, Hollow Section, Flat Product.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chequered Plate Price in UAE, Chequered Sheet Price List Dubai, MS Diamond Plate Abu Dhabi, Chequered Plate Sizes in mm Sharjah, HR Chequered Plate for Flooring UAE, Non-Slip Chequered Plate Dubai, Mild Steel Chequer Plate for Stairs Abu Dhabi, Chequered Pattern Steel for Walkway Sharjah, Chequered Plate for Construction UAE, MS Tread Sheet Supply Dubai, Floor Texture Chequered Plate Abu Dhabi, Industrial Safety Chequer Plate Sharjah.
Stolt Steels is the largest stockist of Chequered Plate in Dubai, UAE.
Stolt Steels is a trusted stockist, stockist, and supplier of premium-quality steel products in Dubai, UAE, serving diverse industrial sectors with reliable materials and timely delivery. With a strong commitment to excellence, we offer a wide range of pipes, sheets, plates, and other metal solutions designed to meet global standards. Our extensive inventory, expert support, and customer-focused approach make us a preferred partner for companies seeking durable and high-performance steel products. For inquiries or orders, contact us at sales@stoltsteels.com.
Types of Chequered Plate
Uses of Chequered Plate
Chequered Plates are popular across various industries thanks to their non-slip surface and robust strength. You’ll often find them used for flooring in industrial plants, walkways, stair treads, truck beds, loading bays, storage areas, and warehouse platforms. In commercial settings, they’re utilized for ramps, elevators, and architectural designs that prioritize safety and durability. In the marine and construction sectors, these plates excel in structural frameworks, scaffolding, and decks due to their strong performance and long-lasting wear resistance. Their versatility truly makes them a go-to choice for safety, load-bearing, and anti-skid applications.
