ABS AH36 Shipbuilding Steel Plates Stockist and Supplier in Dubai, UAE
Home > ABS AH36 Shipbuilding Steel Plates
Stolt Steel stands out as a trusted Stockist and supplier based in Dubai, UAE, specializing in top-notch ABS AH36 shipbuilding steel plates designed for marine and offshore construction. These plates are crafted to meet the rigorous standards set by the American Bureau of Shipping (ABS), making them renowned for their impressive strength, excellent weldability, and durability even in the toughest marine conditions. Stolt Steel is committed to maintaining strict quality control, certified testing, and ensuring a steady supply to support shipyards and fabricators alike. With robust logistics and deep industry knowledge, Stolt Steel provides ABS AH36 steel plates that not only meet international classification standards but also play a crucial role in creating safe, efficient, and long-lasting shipbuilding projects.
ABS AH36 Shipbuilding Steel Plates in UAE, ABS AH36 Ship Steel Plates in Dubai, AH36 ABS Approved Shipbuilding Plates in Abu Dhabi, ABS AH36 Marine Steel Plates in Sharjah, AH36 Shipbuilding Structural Steel Plates in UAE.
Table of Contents
ABS AH36 Shipbuilding Steel Plates Supplier in UAE, ABS AH36 Plates Manufacturer in Dubai, ABS AH36 Steel Plates Exporter in Abu Dhabi, ABS AH36 Ship Steel Plates Stockist in Sharjah, ABS AH36 Plates Distributor in UAE
What is ABS AH36 Shipbuilding Steel Plates?
The ABS AH36 shipbuilding steel plates are made from low-carbon, high-strength steel, featuring a carefully controlled chemical composition. This typically includes carbon levels up to 0.18%, manganese ranging from 0.90% to 1.60%, silicon up to 0.50%, and precisely regulated amounts of phosphorus and sulfur, along with trace alloying elements that boost strength and toughness. On the mechanical side, ABS AH36 plates deliver a minimum yield strength of around 355 MPa and tensile strength between 490 and 620 MPa, along with good elongation properties, ensuring outstanding structural performance and reliability.
ABS AH36 Shipbuilding Steel Plates Specifications
| Parameter | Specification |
|---|---|
| Standard | ABS A131 |
| Grade | AH36 |
| Product Form | Steel Plates |
| Type | High Strength Shipbuilding Steel |
| Heat Treatment | Normalized / Thermo-mechanically Controlled Process (TMCP) |
| Minimum Yield Strength | 355 MPa |
| Tensile Strength | 490 – 620 MPa |
| Minimum Elongation | ≥ 21% |
| Impact Test Temperature | 0 °C |
| Impact Energy (Charpy V) | ≥ 34 J (thickness dependent) |
| Carbon (C) | ≤ 0.18% |
| Manganese (Mn) | 0.90 – 1.60% |
| Silicon (Si) | ≤ 0.50% |
| Phosphorus (P) | ≤ 0.035% |
| Sulfur (S) | ≤ 0.035% |
| Aluminum (Al) | ≥ 0.015% |
| Carbon Equivalent (CE) | ≤ 0.40 (approx., thickness dependent) |
| Thickness Range | 4 mm – 250 mm |
| Width Range | 1,200 mm – 4,000 mm |
| Length Range | 3,000 mm – 18,000 mm |
| Certification | ABS Mill Test Certificate |
| Applications | Ship hulls, decks, offshore structures, marine engineering |
ABS AH36 Shipbuilding Steel Plates Chemical Compositions
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.18 |
| Manganese (Mn) | 0.90 – 1.60 |
| Silicon (Si) | ≤ 0.50 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Aluminum (Al) | ≥ 0.015 |
| Copper (Cu) | ≤ 0.35 |
| Nickel (Ni) | ≤ 0.40 |
| Chromium (Cr) | ≤ 0.20 |
| Molybdenum (Mo) | ≤ 0.08 |
| Vanadium (V) | ≤ 0.10 |
| Niobium (Nb) | ≤ 0.05 |
| Titanium (Ti) | ≤ 0.02 |
ABS AH36 Shipbuilding Steel Plates Equivalent Grades
| Standard / Classification Society | Equivalent Grade |
|---|---|
| ABS (American Bureau of Shipping) | AH36 |
| ASTM / ASME | ASTM A131 Grade AH36 |
| Lloyd’s Register (LR) | LR AH36 |
| DNV (Det Norske Veritas) | DNV AH36 |
| Bureau Veritas (BV) | BV AH36 |
| CCS (China Classification Society) | CCS AH36 |
| KR (Korean Register) | KR AH36 |
| NK (Nippon Kaiji Kyokai) | NK AH36 |
| RINA (Italian Register) | RINA AH36 |
| IRS (Indian Register of Shipping) | IRS AH36 |
| EN (European Standard – approximate) | EN 10025 S355ML / S355NL (closest match) |
If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
ABS AH36 Shipbuilding Steel Plates Price in UAE, ABS AH36 Plates Price List in Dubai, ABS AH36 Ship Steel Plates Thickness in Abu Dhabi, ABS AH36 Plates Sizes in Sharjah, ABS AH36 Marine Steel Plates for Shipyard in UAE
Stolt Steels is the largest stockist of ABS AH36 Shipbuilding Steel Plates in Dubai, UAE.
Stolt Steels is a trusted stockist, stockist, and supplier of premium-quality steel products in Dubai, UAE, serving diverse industrial sectors with reliable materials and timely delivery. With a strong commitment to excellence, we offer a wide range of pipes, fittings, flanges, fasteners, sheets, plates, and other metal solutions designed to meet global standards. Our extensive inventory, expert support, and customer-focused approach make us a preferred partner for companies seeking durable and high-performance steel products. For inquiries or orders, contact us at sales@stoltsteels.com.

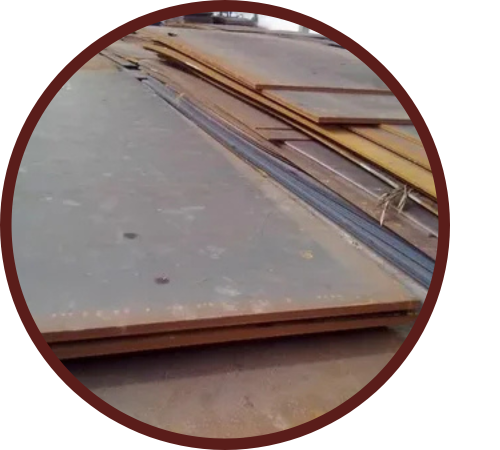

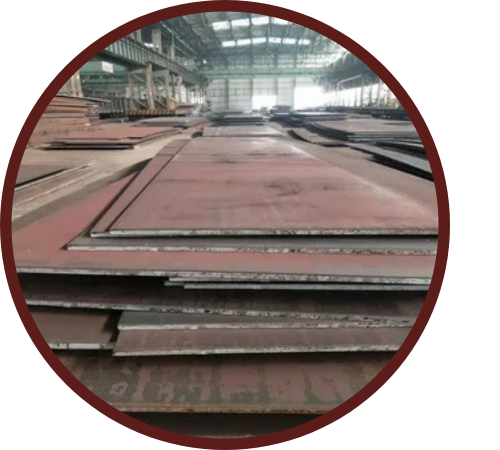

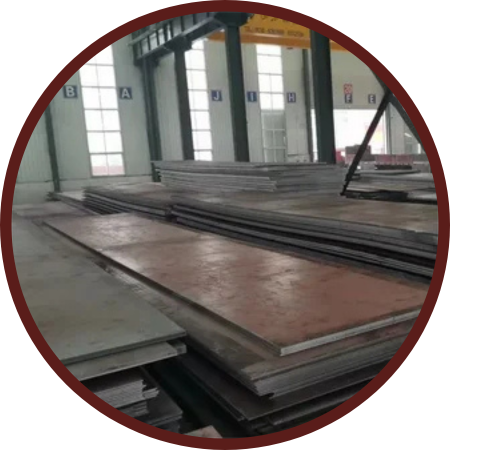

Types of ABS AH36 Shipbuilding Steel Plates
Uses of ABS AH36 Shipbuilding Steel Plates
These ABS AH36 shipbuilding steel plates are extensively utilized in constructing ship hulls, decks, bulkheads, and other key structural components where enhanced strength is essential. They’re commonly found in commercial vessels like container ships, bulk carriers, oil tankers, and offshore structures that face heavy loads and challenging sea conditions. Thanks to their excellent weldability and impact resistance, they are ideal for complex fabrication and repair tasks. Additionally, ABS AH36 plates are employed in offshore platforms and marine engineering projects, ensuring safety, durability, and adherence to international shipbuilding standards.
